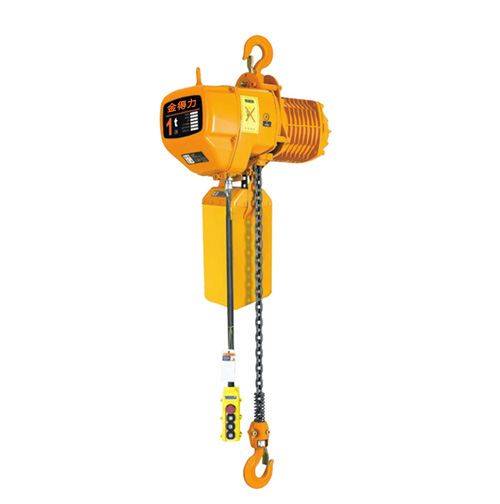

挂钩式 / ELECTRIC CHAIN HOIST

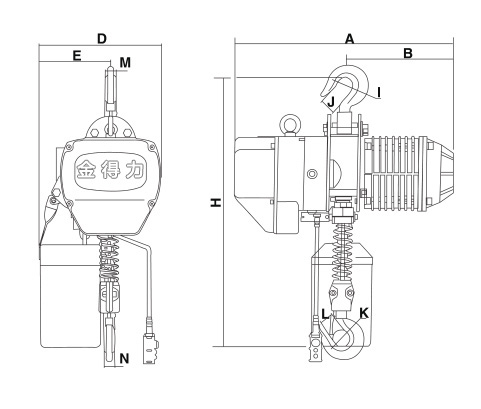

结构图 / STRUCTURE DIAGRAM
尺寸规格 / SIZE SPECIFICATION
| Model 型号 | H | A | B | D | E |
| HHBB0.5-01 | 530 | 460 | 230 | 288 | 165 |
| HHBB01-01 | 650 | 520 | 260 | 300 | 176 |
| HHBB01-02 | 680 | 460 | 230 | 288 | 165 |
| HHBB1.5-01 | 800 | 615 | 295 | 430 | 265 |
| HHBB02-01 | 800 | 615 | 295 | 430 | 265 |
| HHBB02-02 | 835 | 520 | 260 | 300 | 236 |
| HHBB2.5-01 | 845 | 615 | 295 | 430 | 265 |
| HHBB03-01 | 845 | 615 | 295 | 430 | 265 |
| HHBB03-02 | 950 | 615 | 295 | 430 | 320 |
| HHBB03-03 | 950 | 520 | 260 | 350 | 205 |
| HHBB05-02 | 1030 | 615 | 295 | 430 | 325 |
| HHBB7.5-03 | 1380 | 615 | 295 | 505 | 320 |
| HHBB10-04 | 1400 | 630 | 315 | 890 | 445 |
